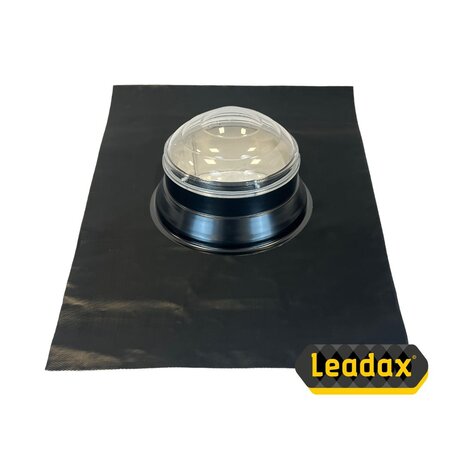

Intura Suntube35 - the light tunnel for pitched roofs with a diameter of 35 cm and a crystal glass dome

Intura SunTube35 light tunnel for daylight under sloping roofs

• The dome is made of crystal glass, which makes it quieter, stronger, self-cleaning and more durable than a plastic dome.

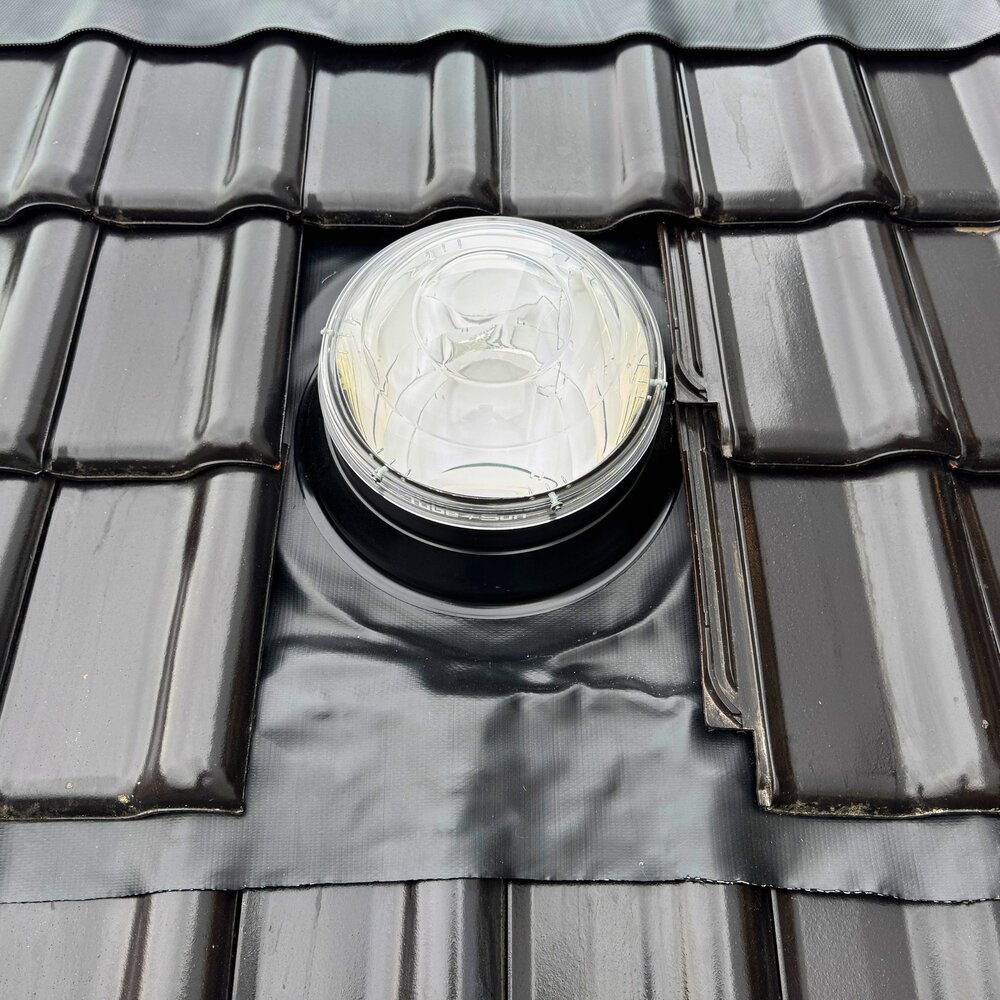

• Easy installation on sloping roofs (Leadax roofing pre-installed)
• Light output sufficient for a space of 16m² (4x4 metres)
• The roof opening must be between 33 and 37 cm in diameter
• The set is complete for a roof thickness of 41 cm (or 65 cm in combination with the Ecopower insulation element)

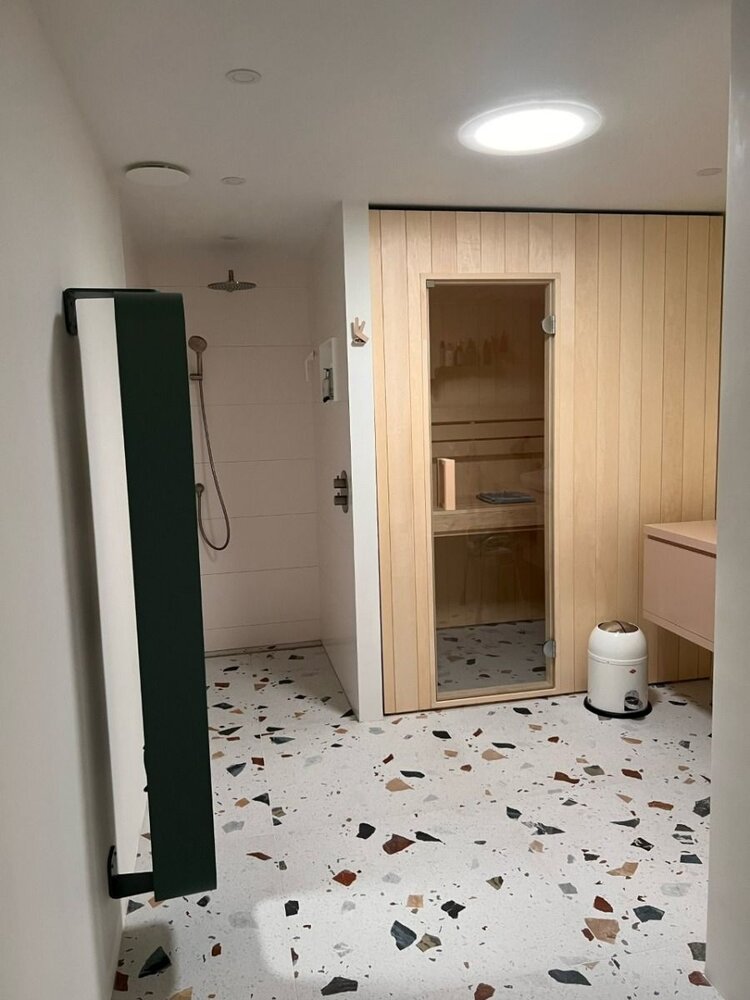

The Intura SunTube35 daylight system for pitched roofs is a light tunnel that transports daylight to any desired space in homes and buildings. It is therefore suitable for spaces such as kitchens, utility rooms, bathrooms, halls, living rooms, workplaces, industrial buildings, etc.

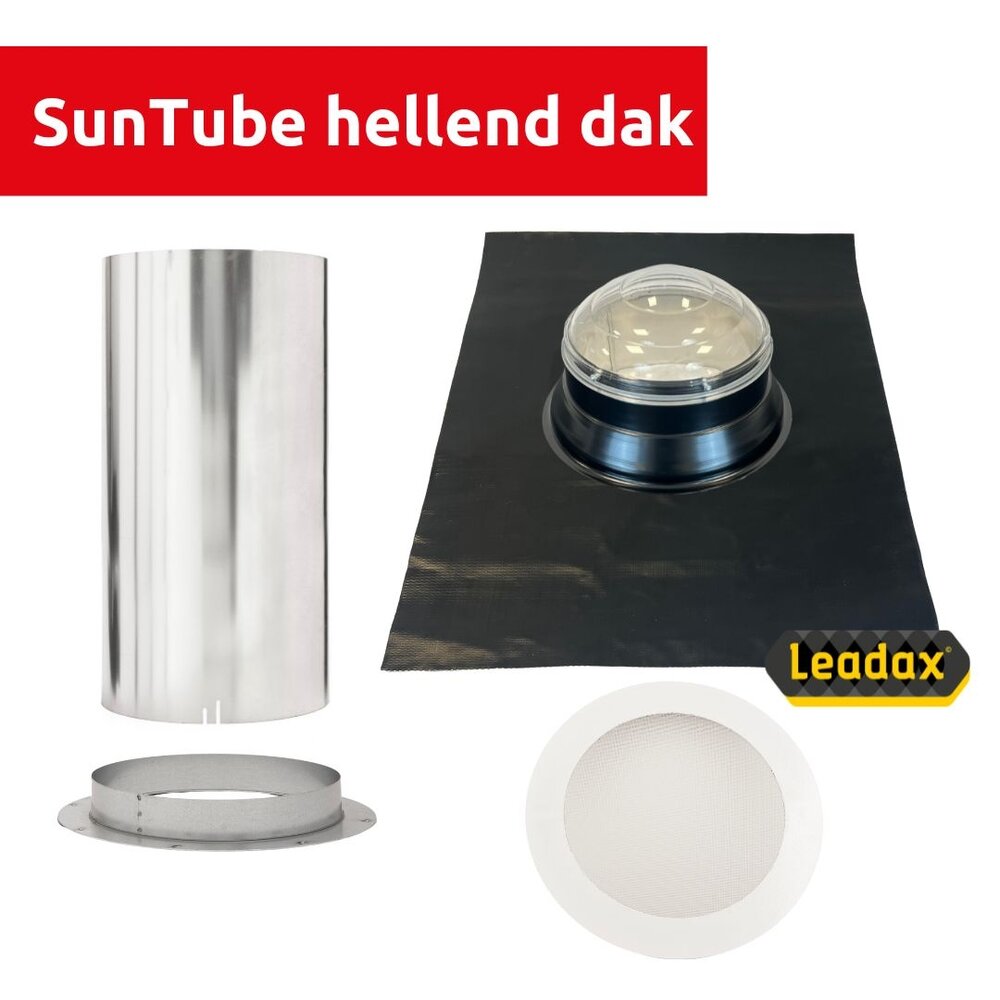

This set for flat roofs consists of the following components:

• Crystal glass dome
• Double-walled insulated aluminium roof upstand RAL 9005 (for flat roofs) with pre-mounted Leadax roofing = quick installation time

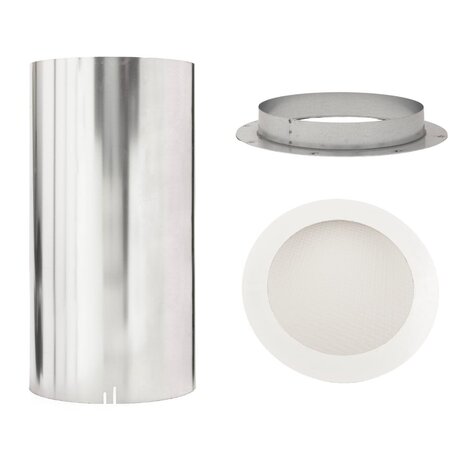

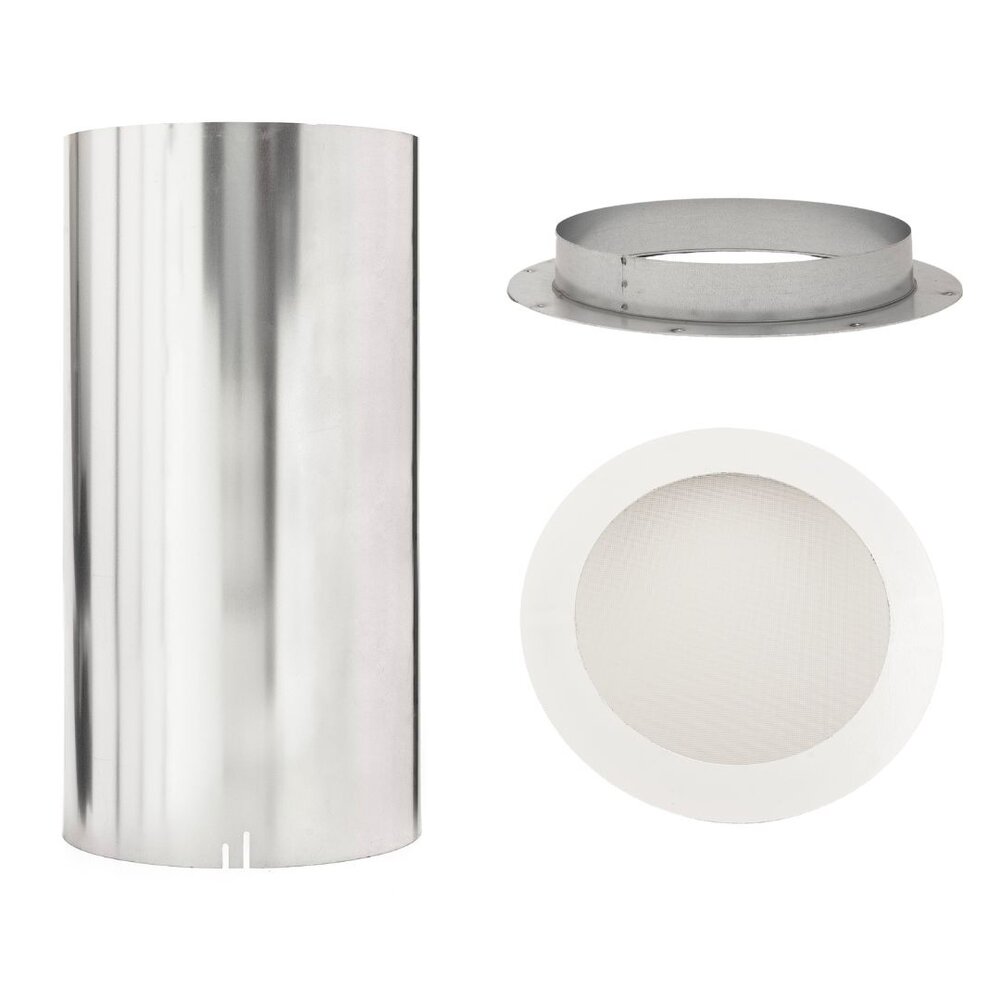

• 60 cm tube length (can be shortened as required)
• Easyclick diffuser for simple assembly
• Mounting materials required for installation

This basic set for pitched roofs contains everything you need for installation if your roof is no thicker than 41 cm (or 65 cm in combination with the insulation element), measured from the top of the roof covering to the bottom of the ceiling.

Extensions

• Can be expanded with EcoPower insulation element with double glazing HR++ or triple glazing HR+++
• Extendable up to 6 metres
• Various accessories available

Intura SunTube light tunnel for pitched roof type 35

A light tunnel is a system that uses reflection to allow daylight into a building. The advantage of this system is that only a small roof opening is required, compared to a skylight, for example.

The Intura SunTube light tunnel has a crystal glass dome that allows more light to enter than direct daylight. The dome is self-cleaning, does not yellow and algae or dirt will not adhere to it, so there will be no loss of light over the years.

Product information for pre-assembled Leadax roofing
