Intura Domelite dome with ventilation curb - crystal clear DOUBLE-WALLED acrylic SUPER DEAL

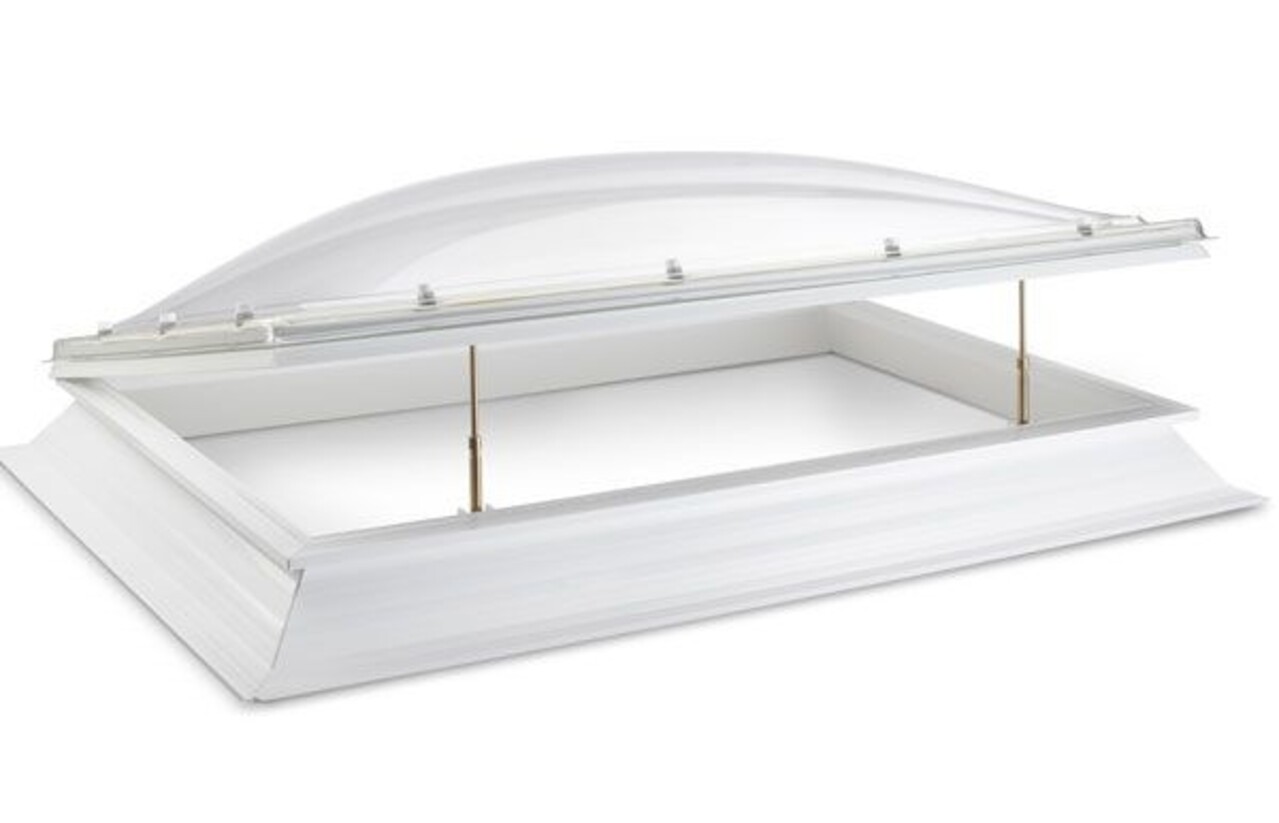

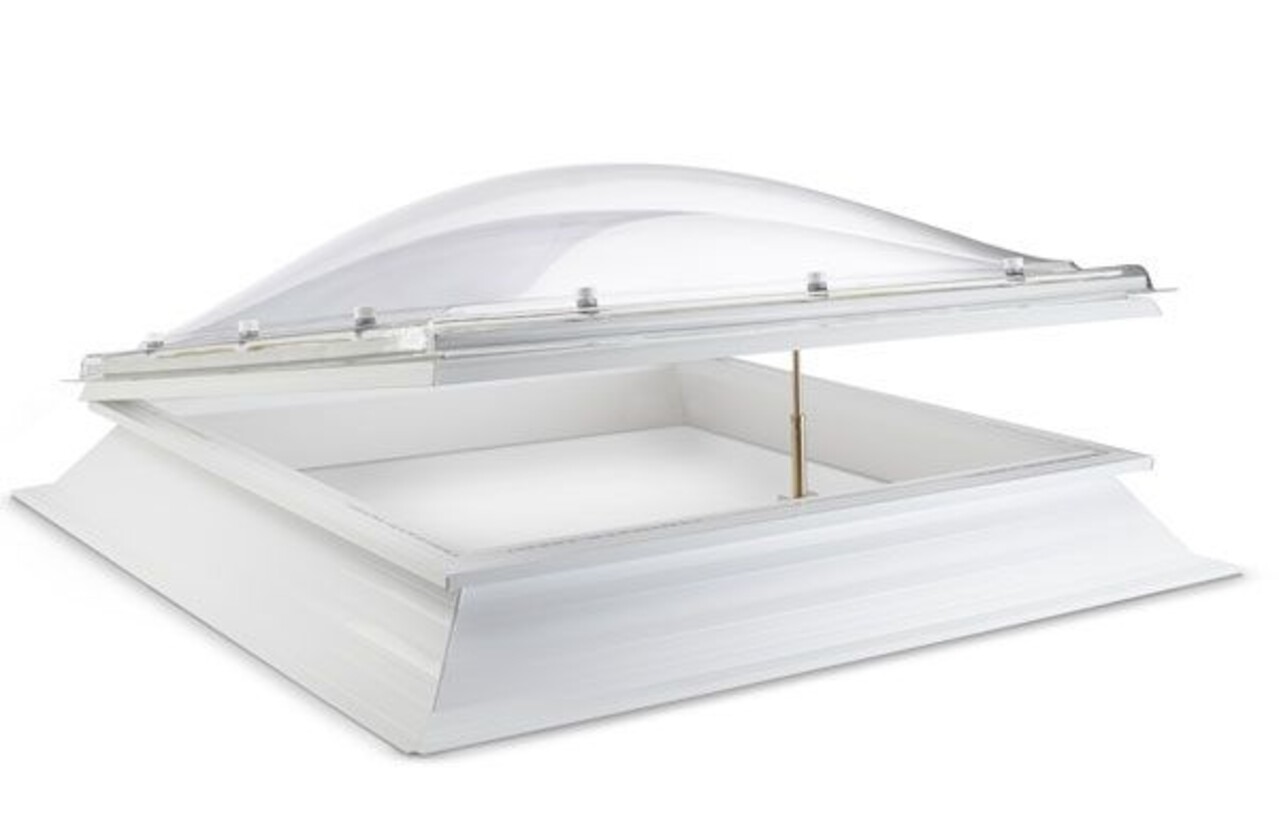

Ventilating double-walled Domelite dome with PVC roof curb SUPER DEAL - manually operated

• Manually operated ventilating dome with curb - double-walled acrylic
• Insulation value of dome 2.08 W/m²K (thermal resistance)
• PVC roof upstand 16 cm high.
• Roof opening 20 cm larger than the daylight size
• Dome also available with single-walled and triple-walled dome in acrylic and as a polycarbonate version
• Electrically operated alternative with HR++ glass or triple glass HR+++? Then choose an electrically ventilated flat roof window from the Intura PGC series.

Operation with spindle

• Solo spindle with rod for smaller sizes (hinges on short side)
• Tandem spindle for day sizes 90x180, 100x150, 100x160 and 100x200 (hinges on long side)

Good to know

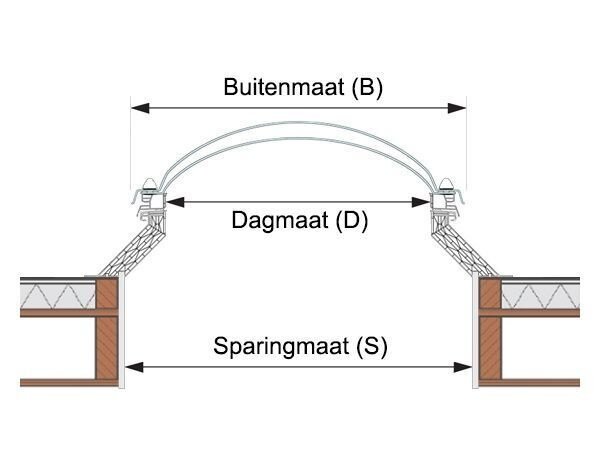

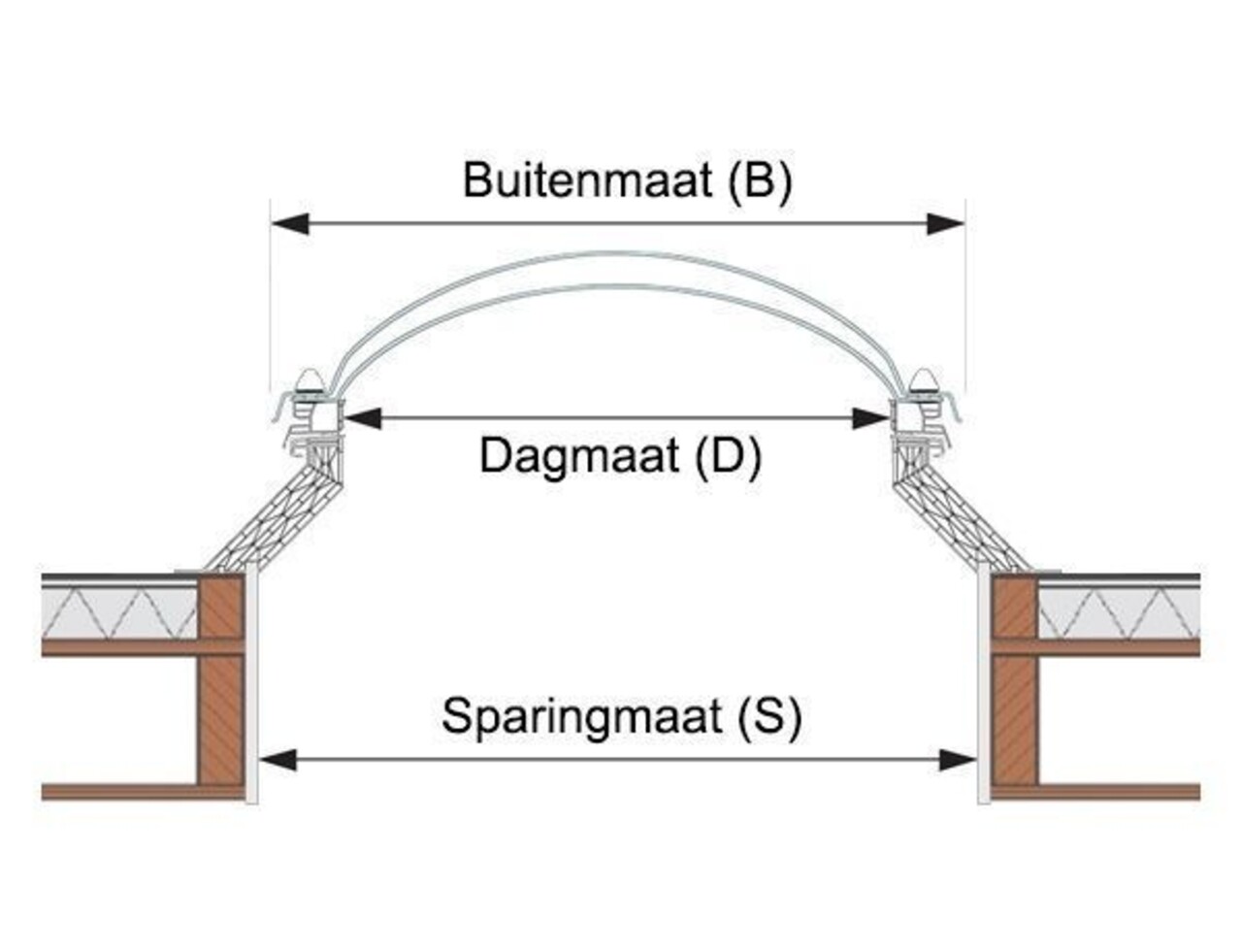

• The external size(B) of the acrylic dome is always the daylight size plus 16 cm.
• The daylight size (D) is the light size, i.e. the actual size through which the light enters.
• The recess size (S) for a sloping PVC roof curb 16/20 is always 20 cm larger than the opening size.


• A double-walled Domelite dome with PVC curb is suitable for heated rooms.
• 10-year manufacturer's warranty on this double-walled ventilating dome
• Orders may be returned within 14 days in accordance with the return conditions
• With a homemade roof curb, the dome must not come into contact with the roof covering
• All Domelite domes come with a pre-mounted sealing strip, cover caps and screws
