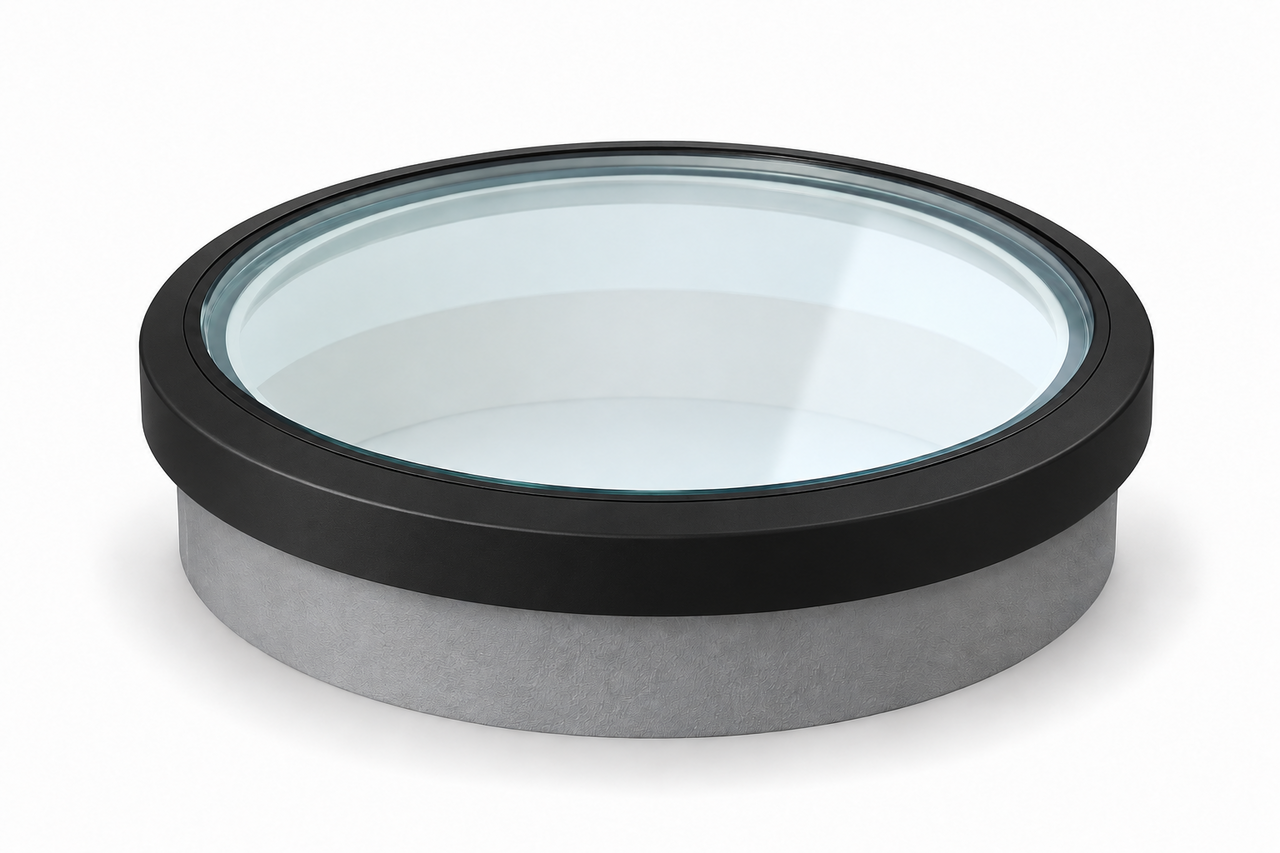

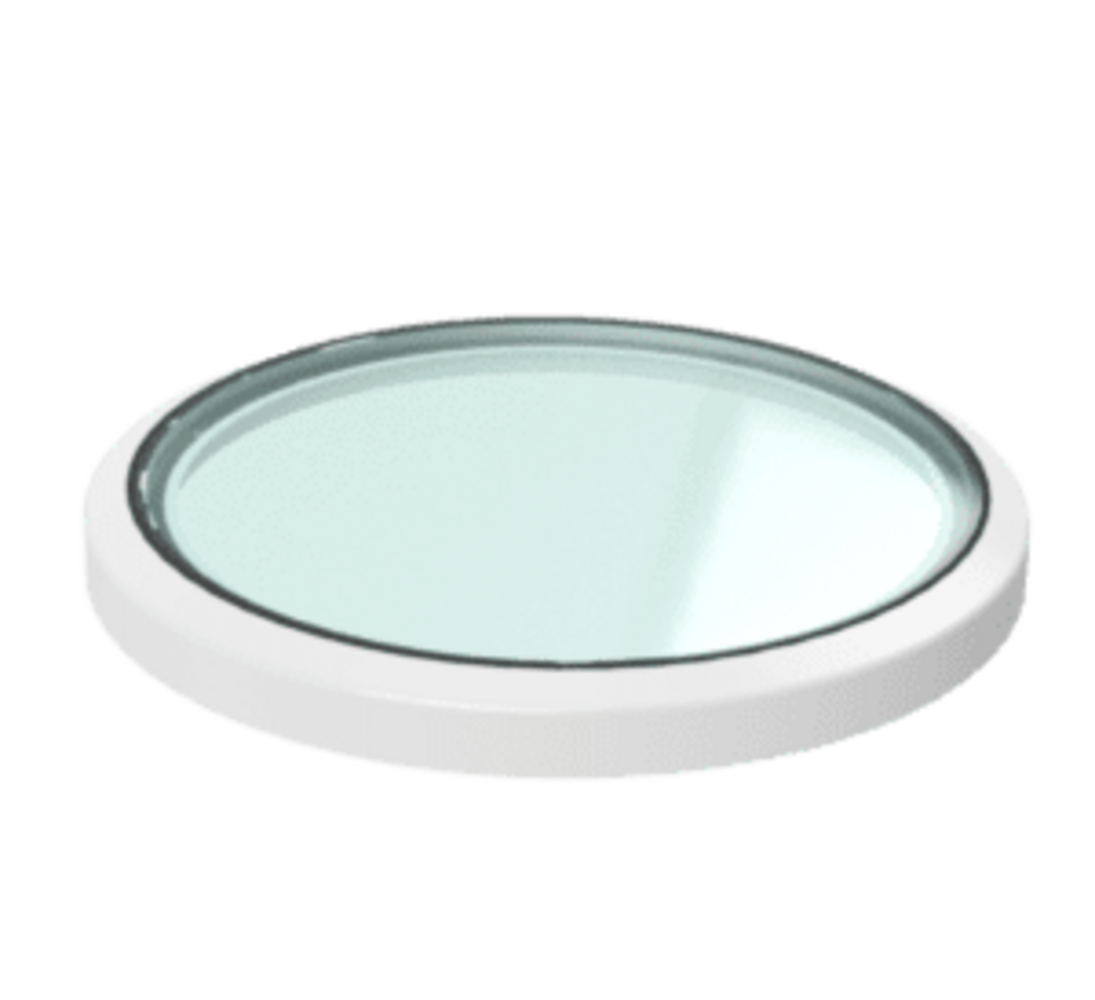

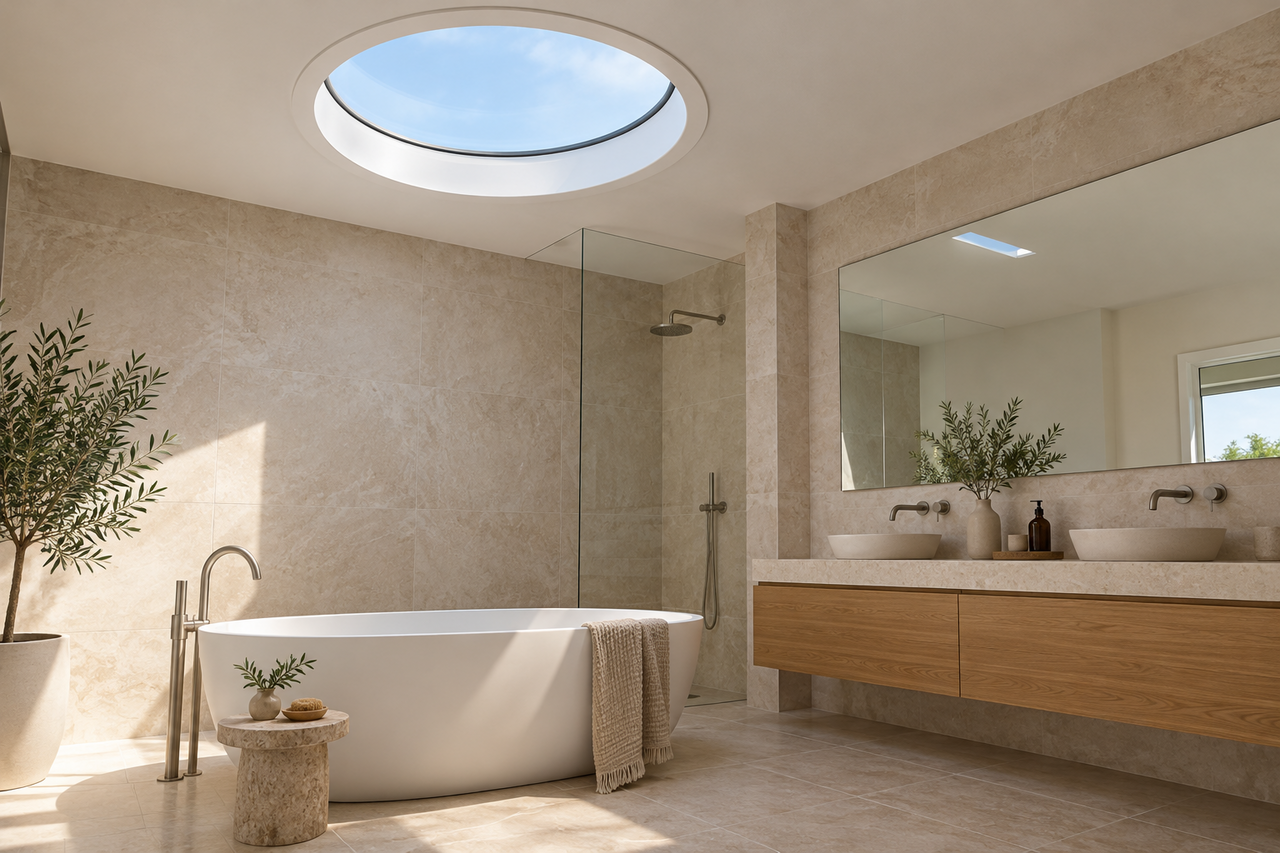

Intura Intura FLX B1 Premium Round Flatlight for roof cut-out, Ø100cm triple glazing

FLATLIGHT round flat roof window Ø 100 cm – HR+++ clear glass

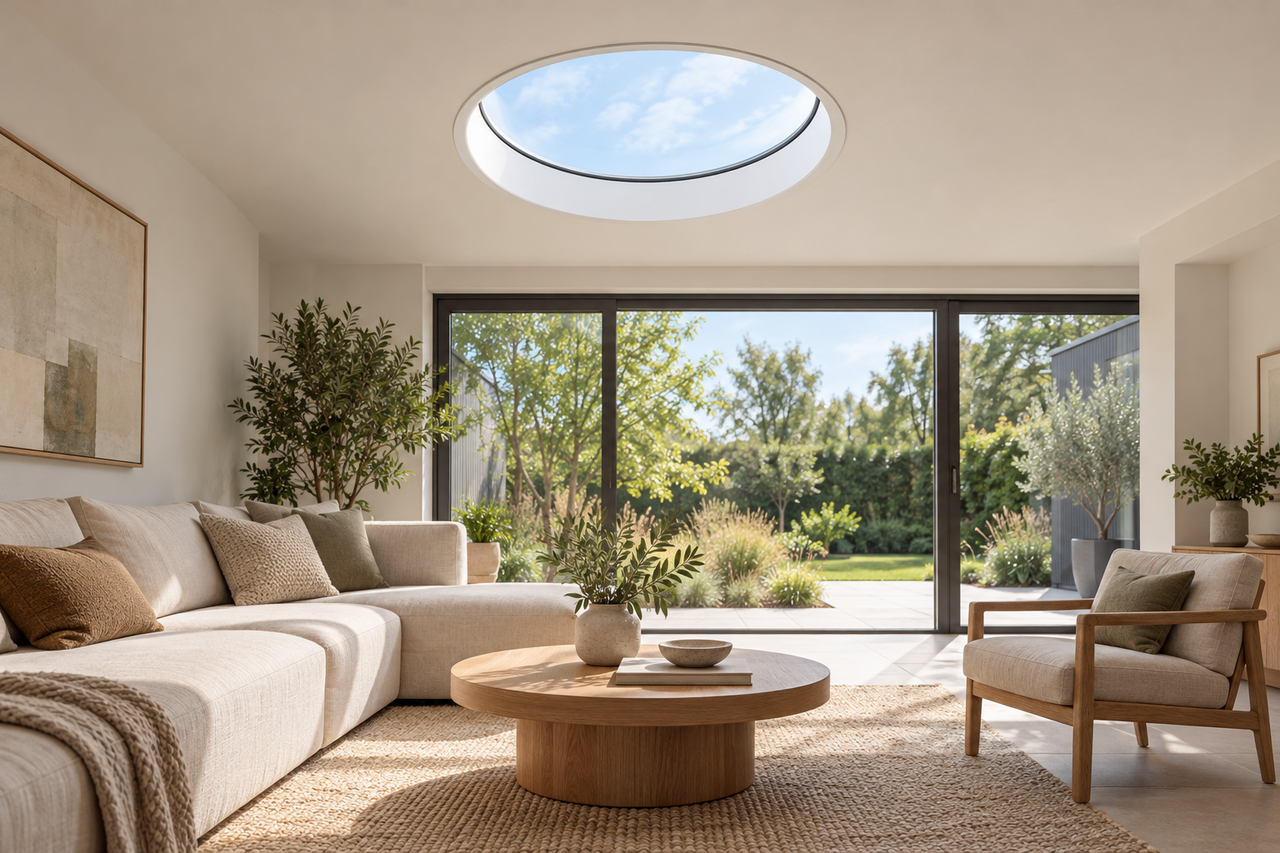

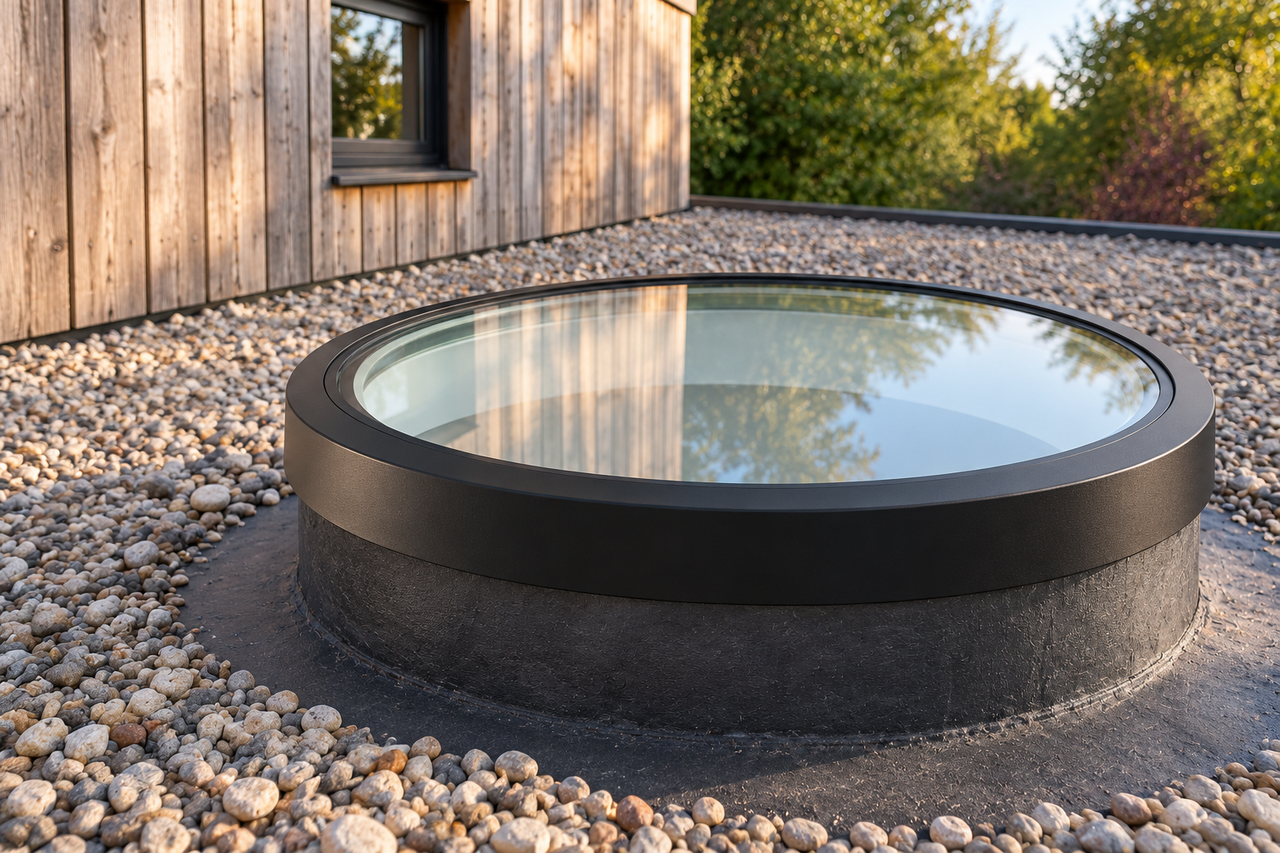

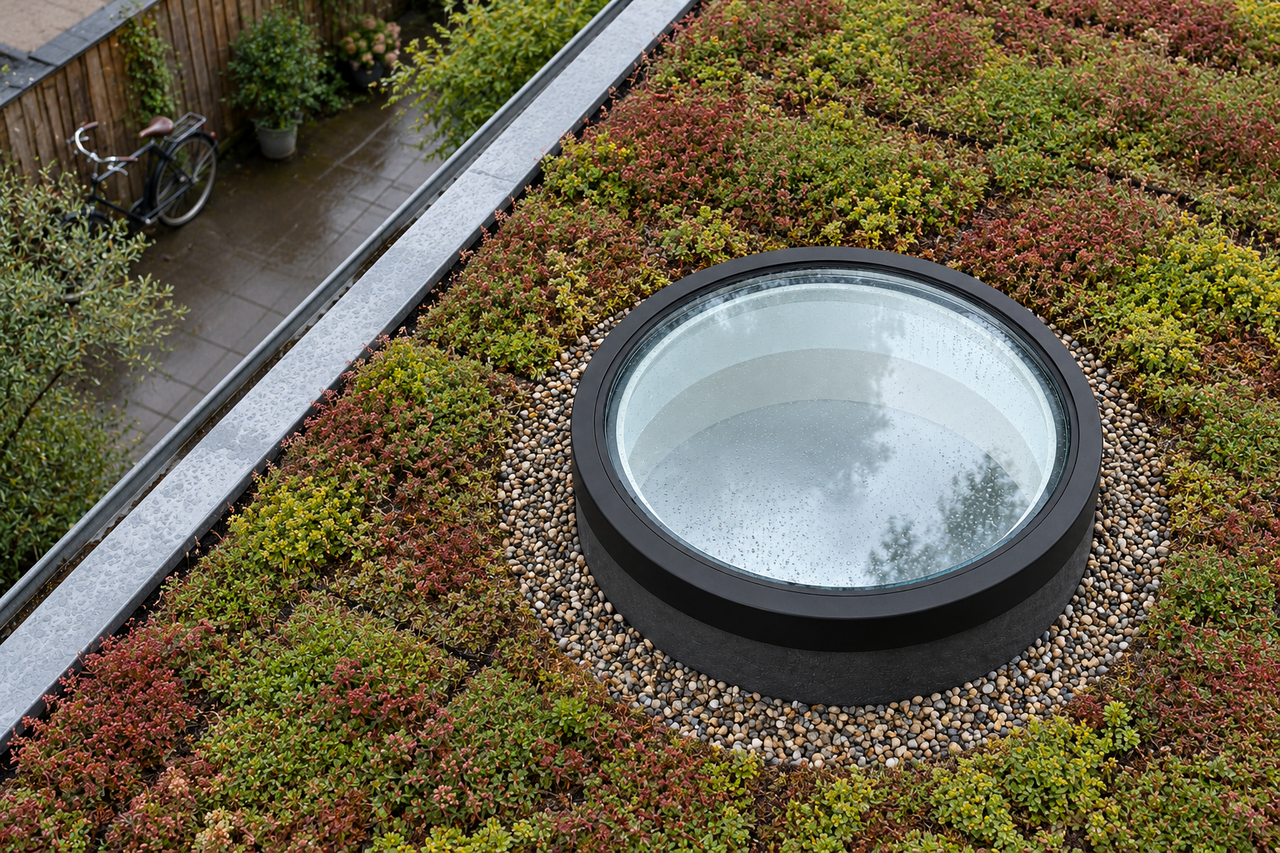

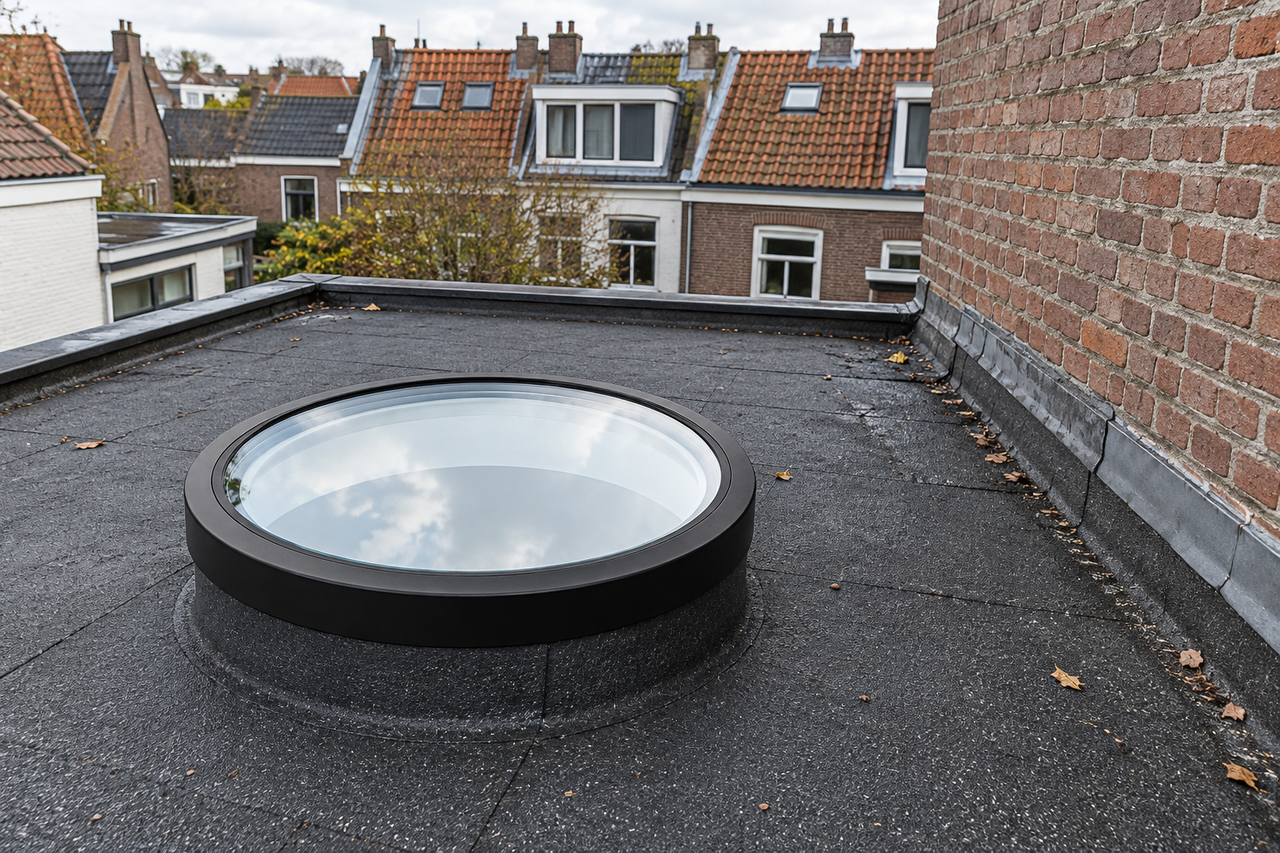

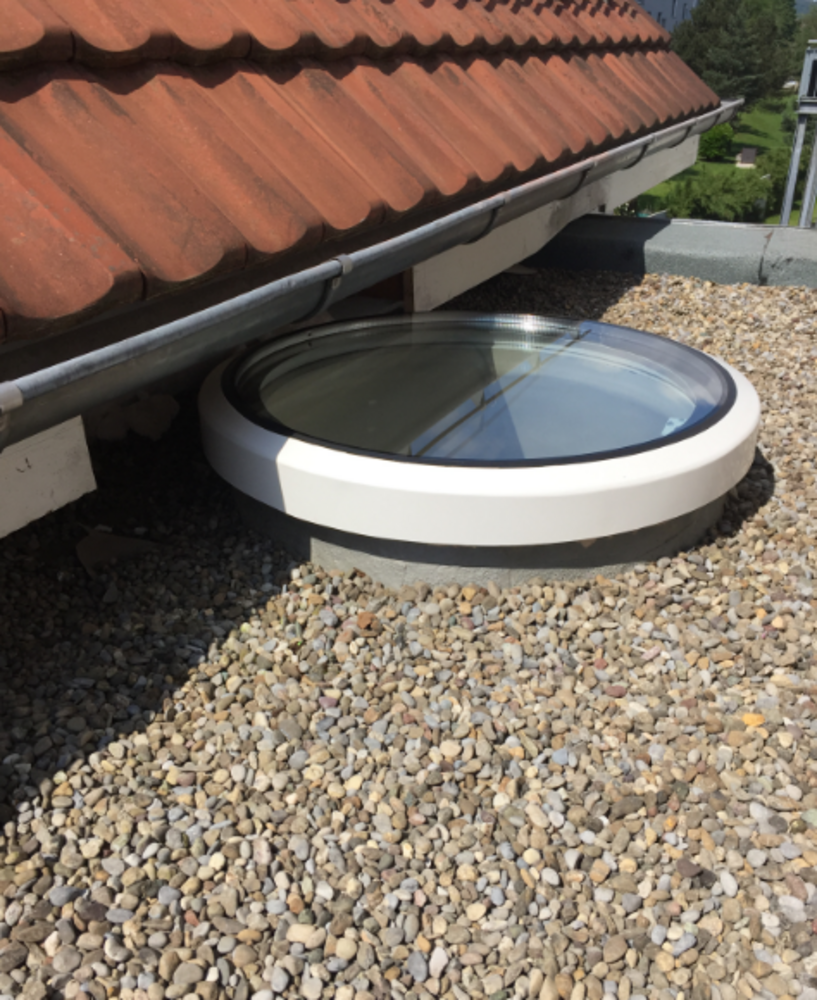

The round FLATLIGHT brings in natural daylight and gives the room a distinctive look. With a clear opening size of Ø 100 cm, this flat roof window is an elegant solution for a round daylight source in a flat roof.

The FLATLIGHT features HR+++ triple glazing with a laminated inner pane, a low-emission coating on the inside and a toughened outer pane. The space between the glass layers is filled with 90% argon for effective thermal insulation. The fibreglass support frame comes with a complete seal between the frame and the glazing.

The accompanying 30 cm high upstand has a 3° pitch and an 8 cm thick insulation panel. The frame colour is chosen in consultation; black and white are the standard colours.

Technical specifications

• Clear opening size: Ø 100 cm

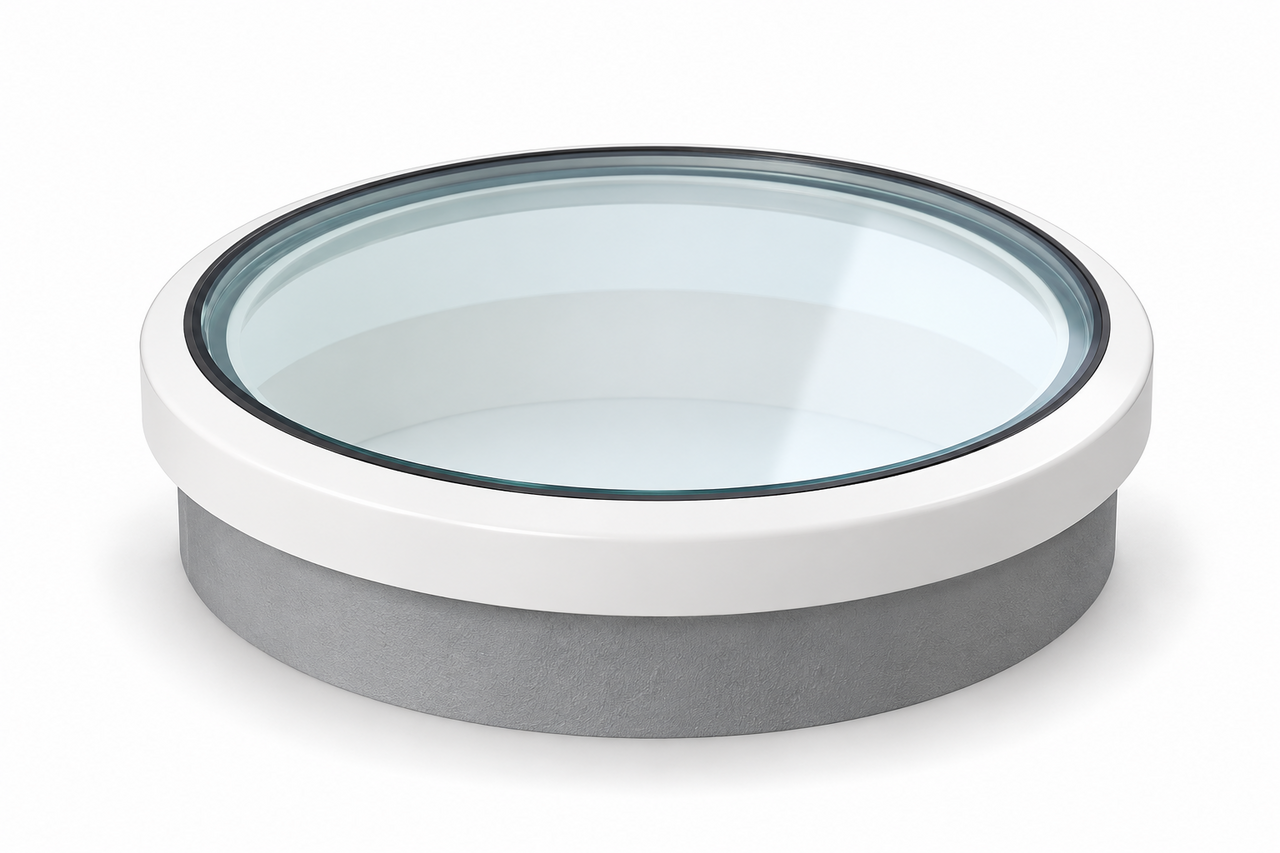

• Frame colour: to be agreed, standard black or white

• Glazing: HR++ double glazing, clear

• Inner pane: laminated, with low-emissivity coating on the inside

• Outer pane: toughened

• Gas filling: 90% argon

• Support frame: fibreglass, including full sealing with the glass

• Upright: 30 cm high, diameter Ø 100 cm

• Slope: 3°

• Inner layer of upstand: galvanised material and white fibreglass

• Outer layer of upstand: fibreglass with an 8 cm thick polyurethane/mineral wool panel
