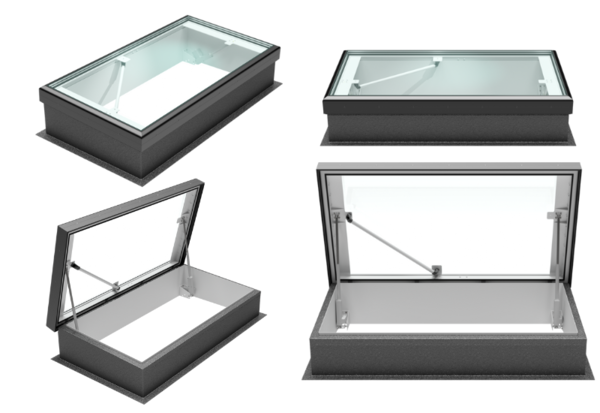

Intura FLH B9 Premium roof exit hatch, electrically operated, 100x200 - triple glazing, sun protection

Intura FLH B9 Premium 100x200cm - 3° slope

• Clear opening size (roof opening): 100x200cm.
• Insulated upstand; interior in white pre-coated steel; exterior in black fibreglass with 6cm and 3° slope.
• Black ALUMINIUM outer profile RAL 9005, fully welded at the corners, including complete sealing with the glass.
• 1 glass pane 3-layer triple SUN PROTECTION GLASS Ug 0.5 W/m²K ( inside laminated with low emission - in between Argon 90% - outside tempered). View technical specifications of the sun protection glass.
• WHITE inner profile (PVC reinforced with metal).
• Hinges on the long side
• Anti-crush safety system - this allows the roof hatch to open automatically as soon as it encounters resistance during closing.
• Two 24V motors - 5000N
• Conversion kit 230V AC / 24 V DC
• CE tested in accordance with Machinery Directive 2006/42/EC – Annex II-A
• Includes remote control and smartpack control via app(Blebox).
• Suitable for operation with wall switch (not included)
• White handle
• View the technical drawing here.
• Insulation value of total product: 0.99 W/m²K
• Designed in Italy
